JSON
If a measurement is triggered via HTTP POST, for example, MetriX can then transmit the measurement result to a customer system as an HTTP POST request.
MetriX acts as an HTTP client. Its task is to provide a correspondingly compatible server.
The format of the request corresponds exactly to the JSON response to GET described above. A detailed description can be found on the Swagger page of the test REST interface.
SFTP / FTP
MetriX can automatically upload the generated color images and measurement data to an SFTP or FTP server, uploading one or more files for each measurement.
The measurement data itself is exported either as a predefined PDF or as an editable text file. The file names can be customized.
Please note: It is not possible to combine several measurements in a single file.

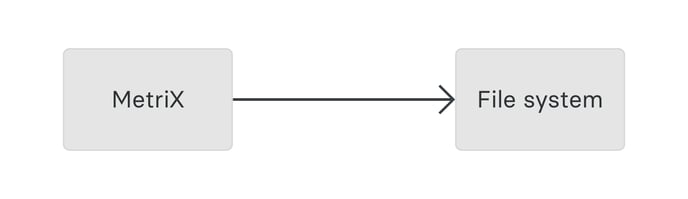

File system
Similar to the described storage on an SFTP or FTP server, MetriX can also store the files locally, for example on a USB stick or a network drive.
